spline.h File Reference

Smooth curve sampling through ordered 3D points (splines). More...

#include <scimesh/types.h>
#include <glm/geometric.hpp>
#include <algorithm>
#include <cmath>
#include <vector>

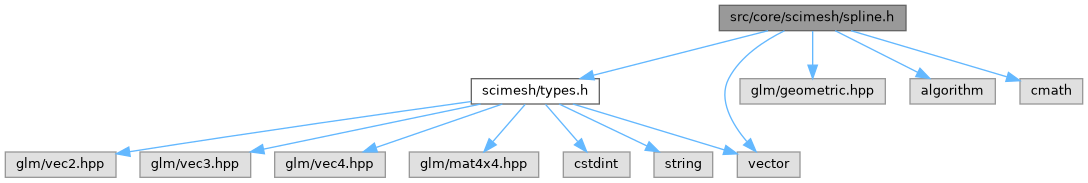

Include dependency graph for spline.h:

Go to the source code of this file.

Namespaces
namespace	scimesh
namespace	scimesh::detail
	Internal helpers of the text renderer.

Functions
Vec3	scimesh::detail::hermite_segment (const Vec3 &p0, const Vec3 &p1, const Vec3 &m0, const Vec3 &m1, double h, double s)
	Cubic Hermite basis evaluation of a single curve segment.
size_t	scimesh::detail::segment_count (size_t num_points, bool closed)
	Number of segments a sampling function has to emit.
size_t	scimesh::detail::next_index (size_t i, size_t num_points, bool closed)
	Index of the point after i, wrapping around for closed curves.
int	scimesh::detail::sample_count (int samples_per_segment)
	Clamp a requested sample count to at least one.
float	scimesh::path_length (const std::vector< Vec3 > &path, bool closed=false)
	Total length of a polyline path.
std::vector< Vec3 >	scimesh::remove_duplicate_points (const std::vector< Vec3 > &path, float epsilon=1e-6f)
	Remove points that repeat their predecessor.
std::vector< Vec3 >	scimesh::path_tangents (const std::vector< Vec3 > &path, bool closed=false)
	Unit tangent direction at every point of a path.
std::vector< float >	scimesh::path_curvature (const std::vector< Vec3 > &path, bool closed=false)
	Discrete curvature at every point of a path.
std::vector< Vec3 >	scimesh::resample_by_arclength (const std::vector< Vec3 > &path, float step, bool closed=false)
	Resample a path at a fixed arc-length step.
std::vector< Vec3 >	scimesh::hermite_path (const std::vector< Vec3 > &points, const std::vector< Vec3 > &tangents, int samples_per_segment=8, bool closed=false)
	Sample a cubic Hermite curve with caller-supplied tangents.
std::vector< Vec3 >	scimesh::catmull_rom_path (const std::vector< Vec3 > &points, int samples_per_segment=8, bool closed=false, float alpha=0.5f)
	Sample a non-uniform Catmull-Rom curve through the given points.
std::vector< Vec3 >	scimesh::bspline_path (const std::vector< Vec3 > &points, int samples_per_segment=8, bool closed=false)
	Sample a uniform cubic B-spline through the given points.
std::vector< Vec3 >	scimesh::bezier_path (const std::vector< Vec3 > &control_points, int samples=64)
	Sample a Bezier curve from a control polygon.

Variables
constexpr size_t	scimesh::detail::kMinPathPoints = 2u
	Minimum number of points that can describe a path.
constexpr double	scimesh::detail::kMinKnotInterval = 1e-6
	Smallest knot interval, to keep a degenerate point pair from producing a zero-length interval (and a division by zero).
constexpr double	scimesh::detail::kArcLengthEpsilon = 1e-9
	Tolerance used when deciding whether an arc-length sample coincides with the end of a path, relative to the total path length.

Detailed Description

Smooth curve sampling through ordered 3D points (splines).

These functions turn a coarse list of waypoints into a dense, smooth polyline, here called a path. A path is what the path-taking parts of the library expect: generate_tube() sweeps a cross-section along one, and line layers (render_segments(), LineLayer) draw one straight segment per consecutive pair of points. Feeding a handful of control points directly to those produces a visibly faceted tube and a polygonal line; a spline is how you get the smooth version.

Nothing here knows about meshes, scenes or the renderer: this is pure geometry on std::vector<Vec3>, so it composes with primitives.h, lines.h and your own code alike.

Example

// A smooth tube through four waypoints:
std::vector<Vec3> waypoints = {{0,0,0}, {1,1,0}, {2,0,0}, {3,1,0}};
std::vector<Vec3> path = catmull_rom_path(waypoints, 8);
Mesh tube = generate_tube(path, 0.1f, 12, Color(0.8f, 0.2f, 0.2f));

See also

generate_tube(), generate_multi_tubes(), LineLayer

Note

All sampling functions store the result as float (that is what Vec3 is), but the curve parameterization is computed in double. The knot spacing of a centripetal Catmull-Rom curve involves pow(), and doing that in float would make the parameterization — not the geometry — the dominant source of error on long paths.

Definition in file spline.h.
