lines.h File Reference

Screen-space line primitives — the LineLayer. More...

#include <scimesh/types.h>
#include <algorithm>
#include <vector>

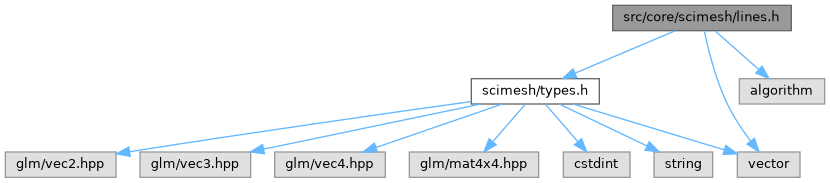

Include dependency graph for lines.h:

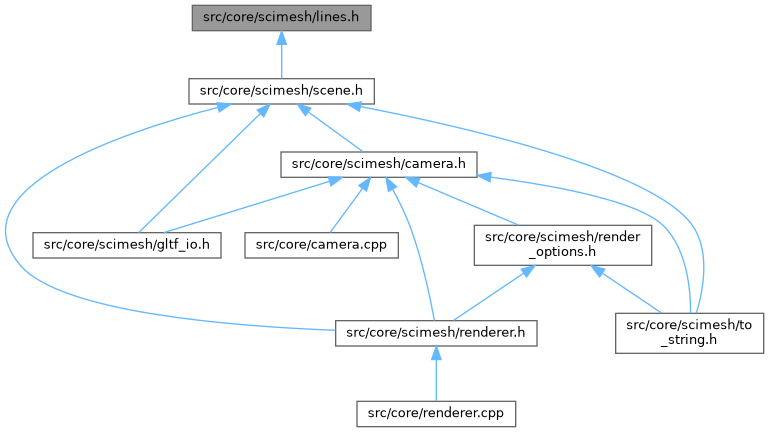

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	scimesh::LineLayer
	A batch of independent line segments drawn with a fixed screen-space width. More...
struct	scimesh::LineNodeRef
	A non-owning reference to one line layer in a scene, together with its placement transform (and optional name). More...

Namespaces
namespace	scimesh

Detailed Description

Screen-space line primitives — the LineLayer.

Line layers are the cheap counterpart of tube meshes (see generate_multi_tubes()): they draw many independent line segments with a width measured in pixels instead of world units, so no geometry is created at all. This is the same behaviour as hardware line rendering (rgl::segments3d(), OpenGL GL_LINES), which makes line layers the natural choice for wireframes, network/graph edges, trajectories and any other large set of thin lines.

Definition in file lines.h.
