clipping.h File Reference

Triangle clipping against planes (view frustum and clip planes). More...

#include <scimesh/types.h>
#include <vector>

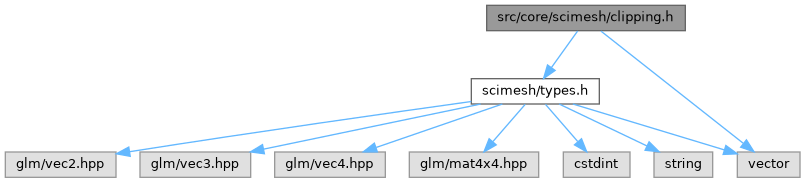

Include dependency graph for clipping.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	scimesh::ClipVertex
	A processed vertex in clip space, ready for perspective divide. More...

Namespaces
namespace	scimesh

Functions
int	scimesh::clip_triangle_near_plane (const ClipVertex &v0, const ClipVertex &v1, const ClipVertex &v2, std::vector< ClipVertex > &output_vertices, std::vector< Triangle > &output_triangles)
	Clip a triangle against the near clipping plane in clip space.
int	scimesh::clip_triangle_view_plane (const Vec3 &v0, const Vec3 &v1, const Vec3 &v2, const Vec3 &n0, const Vec3 &n1, const Vec3 &n2, const Color &c0, const Color &c1, const Color &c2, const Vec2 &uv0, const Vec2 &uv1, const Vec2 &uv2, const ClipPlane &plane, std::vector< ClipVertex > &output_vertices, std::vector< Triangle > &output_triangles)
	Clip a triangle against an arbitrary plane in view space.

Detailed Description

Triangle clipping against planes (view frustum and clip planes).

Clipping ensures that only the visible portion of triangles that cross the view frustum boundaries or user-specified clip planes is drawn. Without clipping, triangles that extend outside the view would produce visual artifacts.

Definition in file clipping.h.
