types.h File Reference

Fundamental types used throughout the scimesh rendering engine. More...

#include <glm/vec2.hpp>
#include <glm/vec3.hpp>
#include <glm/vec4.hpp>
#include <glm/mat4x4.hpp>
#include <vector>
#include <cstdint>
#include <string>

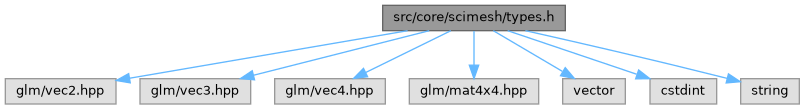

Include dependency graph for types.h:

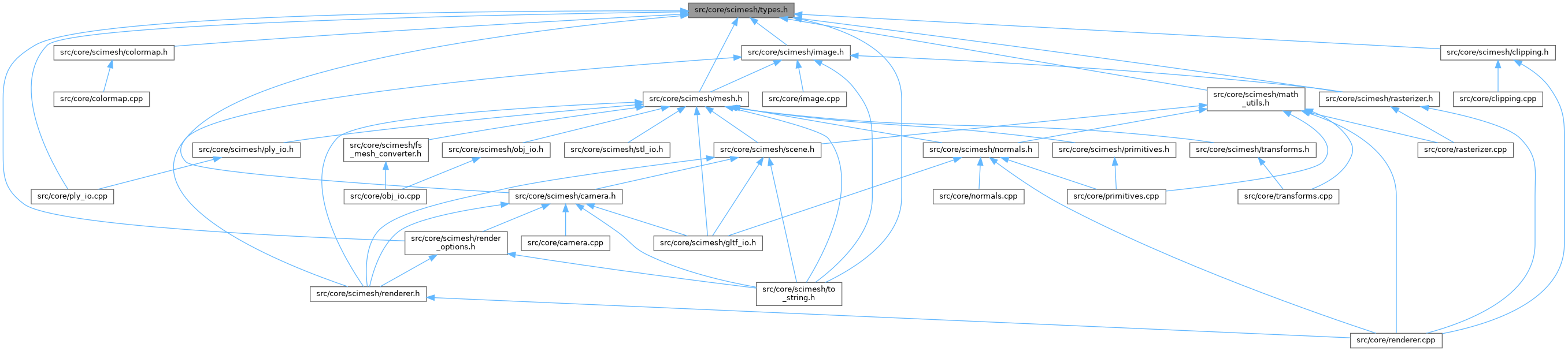

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	scimesh::Color
	An RGBA color with floating-point components. More...
struct	scimesh::Triangle
	A triangle defined by three vertex indices. More...
struct	scimesh::Light
	A light source for the Blinn-Phong shading model. More...
struct	scimesh::ClipPlane
	A clipping plane that can hide parts of the scene. More...

Namespaces
namespace	scimesh

Typedefs
using	scimesh::Vec2 = glm::vec2
	2-component floating-point vector (xy).
using	scimesh::Vec3 = glm::vec3
	3-component floating-point vector (xyz).
using	scimesh::Vec4 = glm::vec4
	4-component floating-point vector (xyzw).
using	scimesh::Mat4 = glm::mat4
	4×4 floating-point matrix.

Variables
constexpr Color	scimesh::DEFAULT_COLOR {0.7f, 0.7f, 0.7f, 1.0f}
	The default mesh color: a neutral light gray (0.7, 0.7, 0.7).
constexpr Color	scimesh::TRANSPARENT_BLACK {0.0f, 0.0f, 0.0f, 0.0f}
	A fully transparent black color (0, 0, 0, 0).
constexpr Color	scimesh::WHITE {1.0f, 1.0f, 1.0f, 1.0f}
	An opaque white color (1, 1, 1, 1).

Detailed Description

Fundamental types used throughout the scimesh rendering engine.

This header defines the basic building blocks: vectors, colors, triangles, lights, and clip planes. All scimesh types live in the scimesh namespace.

Note

scimesh uses GLM (OpenGL Mathematics) for its vector and matrix types. Vec2, Vec3, Vec4, and Mat4 are all GLM types, so you get the full GLM API for free — dot products, cross products, matrix multiplication, etc.

Definition in file types.h.
