primitives.cpp File Reference

#include <scimesh/primitives.h>
#include <scimesh/normals.h>
#include <scimesh/math_utils.h>
#include <glm/glm.hpp>
#include <glm/gtc/constants.hpp>
#include <cmath>
#include <algorithm>

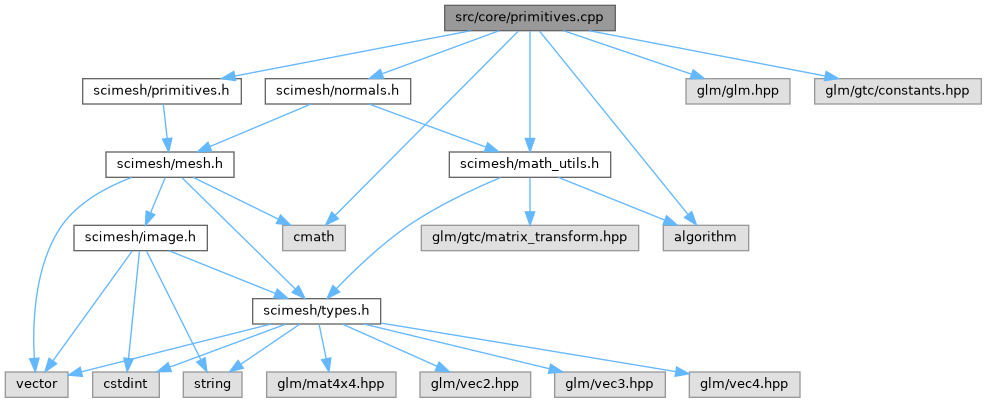

Include dependency graph for primitives.cpp:

Go to the source code of this file.

Namespaces
namespace	scimesh

Functions
Mesh	scimesh::generate_sphere (const Vec3 &center, float radius, int segments, const Color &color)
	Generate a UV-sphere (latitude/longitude tessellation).
Mesh	scimesh::generate_cylinder (const Vec3 &start, const Vec3 &end, float radius, int segments, const Color &color)
	Generate a cylinder between two endpoints.
Mesh	scimesh::generate_cone (const Vec3 &base, const Vec3 &tip, float radius, int segments, const Color &color)
	Generate a cone from a base circle to a tip point.
Mesh	scimesh::generate_arrow (const Vec3 &from, const Vec3 &to, float shaft_radius, float head_radius, float head_length, int segments, const Color &color)
	Generate a 3D arrow from from to to.
void	scimesh::merge_mesh (Mesh &dst, const Mesh &src)
	Merge one mesh into another (append geometry).
Mesh	scimesh::generate_multi_spheres (const std::vector< Vec3 > &centers, const std::vector< float > &radii, const std::vector< Color > &colors, int segments=16)
	Generate multiple spheres in a single mesh (efficient batching).
Mesh	scimesh::generate_multi_cylinders (const std::vector< Vec3 > &starts, const std::vector< Vec3 > &ends, const std::vector< float > &radii, const std::vector< Color > &colors, int segments=12)
	Generate multiple cylinders in a single mesh (efficient batching).
Mesh	scimesh::generate_cuboid (const Vec3 &center, const Vec3 &half_extents, const Color &color)
	Generate an axis-aligned cuboid (rectangular box).
Mesh	scimesh::generate_pyramid (const Vec3 &base_center, const Vec3 &apex, float half_width, const Color &color)
	Generate a square-based pyramid.
Mesh	scimesh::generate_tetrahedron (const Vec3 &p0, const Vec3 &p1, const Vec3 &p2, const Vec3 &p3, const Color &color)
	Generate a tetrahedron (triangular pyramid) from four points.
Mesh	scimesh::generate_torus (const Vec3 &center, float major_radius, float minor_radius, int major_segments, int minor_segments, const Color &color)
	Generate a torus (donut shape).
Mesh	scimesh::generate_plane (const Vec3 &center, const Vec3 &normal, float half_size_x, float half_size_y, const Color &color)
	Generate a flat rectangular plane.
