image.h File Reference

The Image — an RGBA pixel buffer with compositing and I/O operations. More...

#include <scimesh/types.h>
#include <vector>
#include <cstdint>
#include <string>

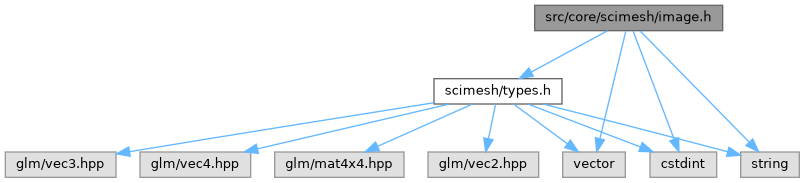

Include dependency graph for image.h:

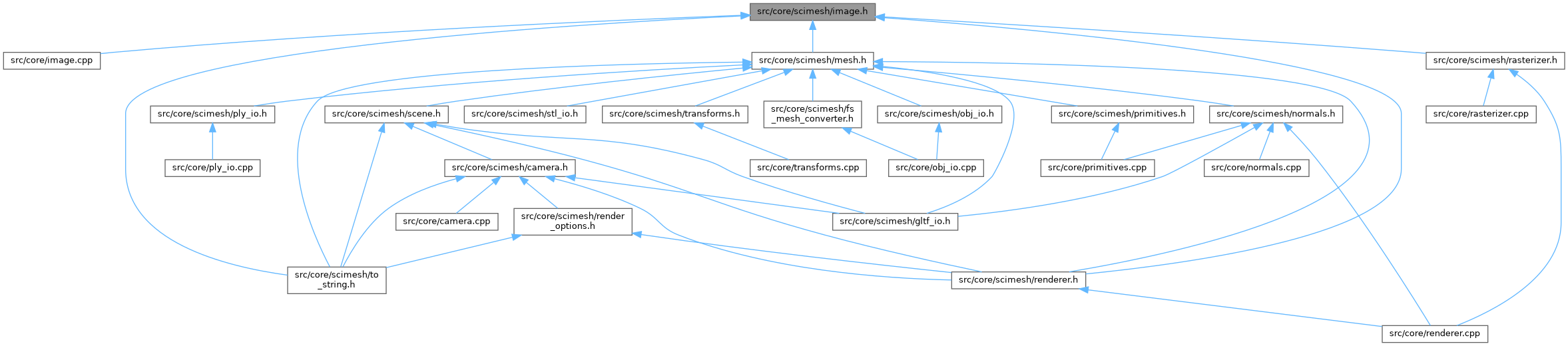

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	scimesh::Image
	A 2D RGBA image buffer. More...

Namespaces
namespace	scimesh

Enumerations
enum class	scimesh::MergeDirection { scimesh::LEFT , scimesh::RIGHT , scimesh::TOP , scimesh::BOTTOM }
	Direction for the merge() operation. More...
enum class	scimesh::CropContentDirection {   scimesh::LEFT , scimesh::RIGHT , scimesh::HORIZONTAL , scimesh::TOP ,   scimesh::BOTTOM , scimesh::VERTICAL , scimesh::ALL }
	Direction(s) for the crop_to_content() operation. More...
enum class	scimesh::FitMode { scimesh::PAD , scimesh::SCALE }
	Strategy for normalizing images to a common cell size in grid_arrange(). More...

Functions
Image	scimesh::grid_arrange (const std::vector< Image > &images, int ncol=0, int nrow=0, FitMode fit_mode=FitMode::PAD, const Color &background=Color(1.0f, 1.0f, 1.0f, 1.0f))
	Arrange a list of images into a grid layout.
Image	scimesh::stack_horizontal (const std::vector< Image > &images, FitMode fit_mode=FitMode::PAD, const Color &background=Color(1.0f, 1.0f, 1.0f, 1.0f))
	Stack images horizontally in a single row.
Image	scimesh::stack_vertical (const std::vector< Image > &images, FitMode fit_mode=FitMode::PAD, const Color &background=Color(1.0f, 1.0f, 1.0f, 1.0f))
	Stack images vertically in a single column.

Detailed Description

The Image — an RGBA pixel buffer with compositing and I/O operations.

scimesh uses its own image class so that rendering is self-contained: no external image libraries are needed for basic operations. Pixel data is stored as raw RGBA bytes in row-major order.

Definition in file image.h.
