fsbrain fMRI Showcase & Validation Suite

This site demonstrates how to visualize functional MRI (fMRI) results on the cortical surface with fsbrain in pure R, and how to validate that coordinate transformations, hemisphere alignments, and surface index mappings match established anatomical topographies.

The repository serves two purposes:

  1. Showcase / tutorial — a guided walkthrough of the two dominant ways fMRI researchers plot statistical results on the surface.
  2. Ground-truth validation — each workflow ships an automated script that asserts the result lands where it anatomically must.

The two core workflows

Workflow A Workflow B
Input Volumetric MNI152 map CIFTI-2 grayordinates (.dscalar.nii)
Typical source Group-level GLM / contrast (SPM, FSL, AFNI) HCP-style pipelines (fMRIPrep, HCP Pipelines, ciftify)
Target mesh fsaverage (FreeSurfer) fs_LR 32k (HCP grayordinates)
Bridging tool regfusionr::vol_to_fsaverage() (Wu et al., 2018) freesurferformats::read.fs.morph.cifti()
Rendering fsbrain::vis.data.on.subject() coloredmesh.from.preloaded.data() + export()
Tutorial Workflow A Workflow B
Validation script 01_mni_volumetric/run_mni_validation.R 02_cifti_fslr32k/run_cifti_validation.R

Pipeline comparison

flowchart LR

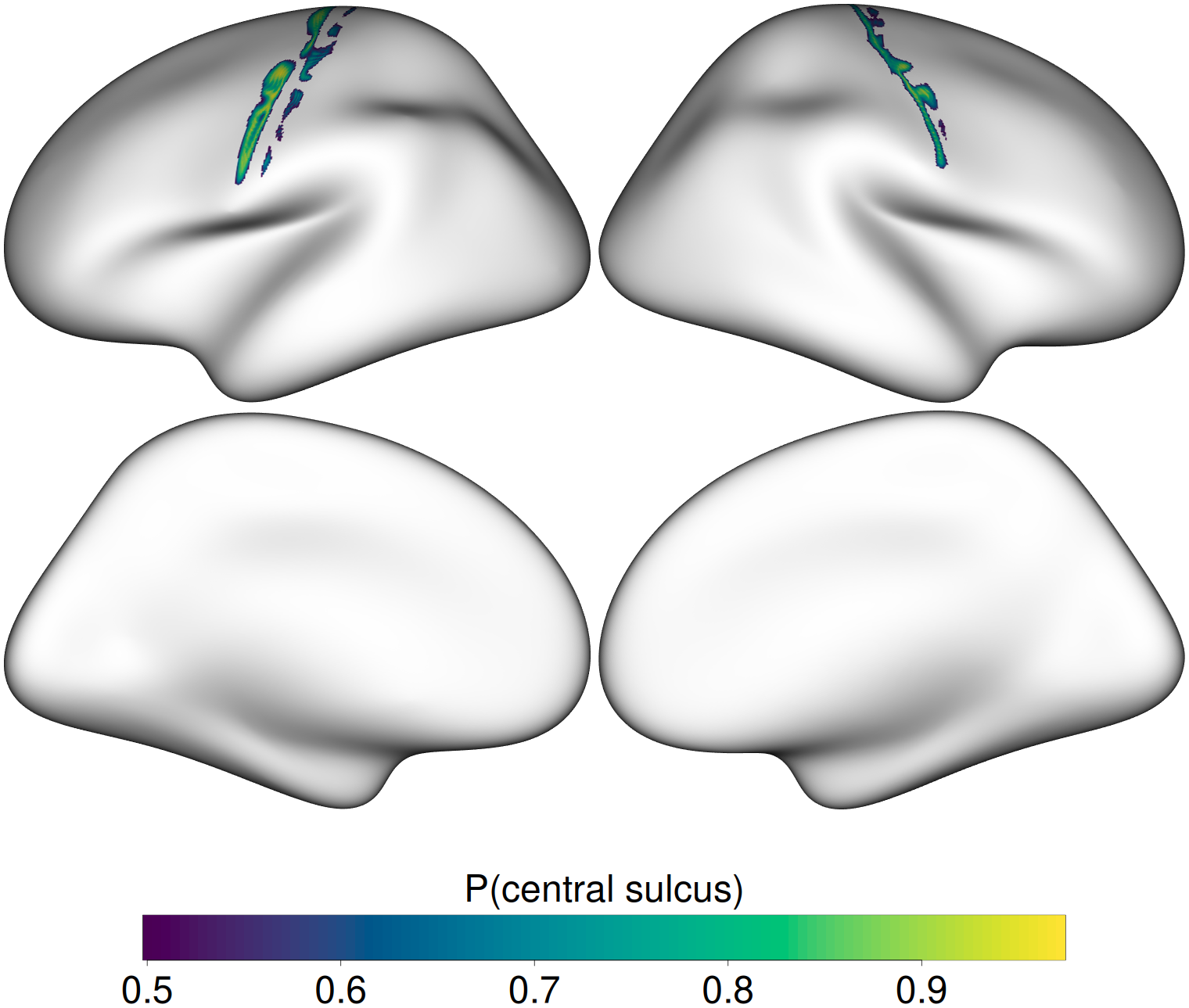

  subgraph A["Workflow A: volumetric → fsaverage"]
    V["MNI152 volume"] --> RF["regfusionr::vol_to_fsaverage()"]
    RF --> FS["fsaverage per-vertex data"]
    FS --> VIZ["fsbrain::vis.data.on.subject()"]
  end

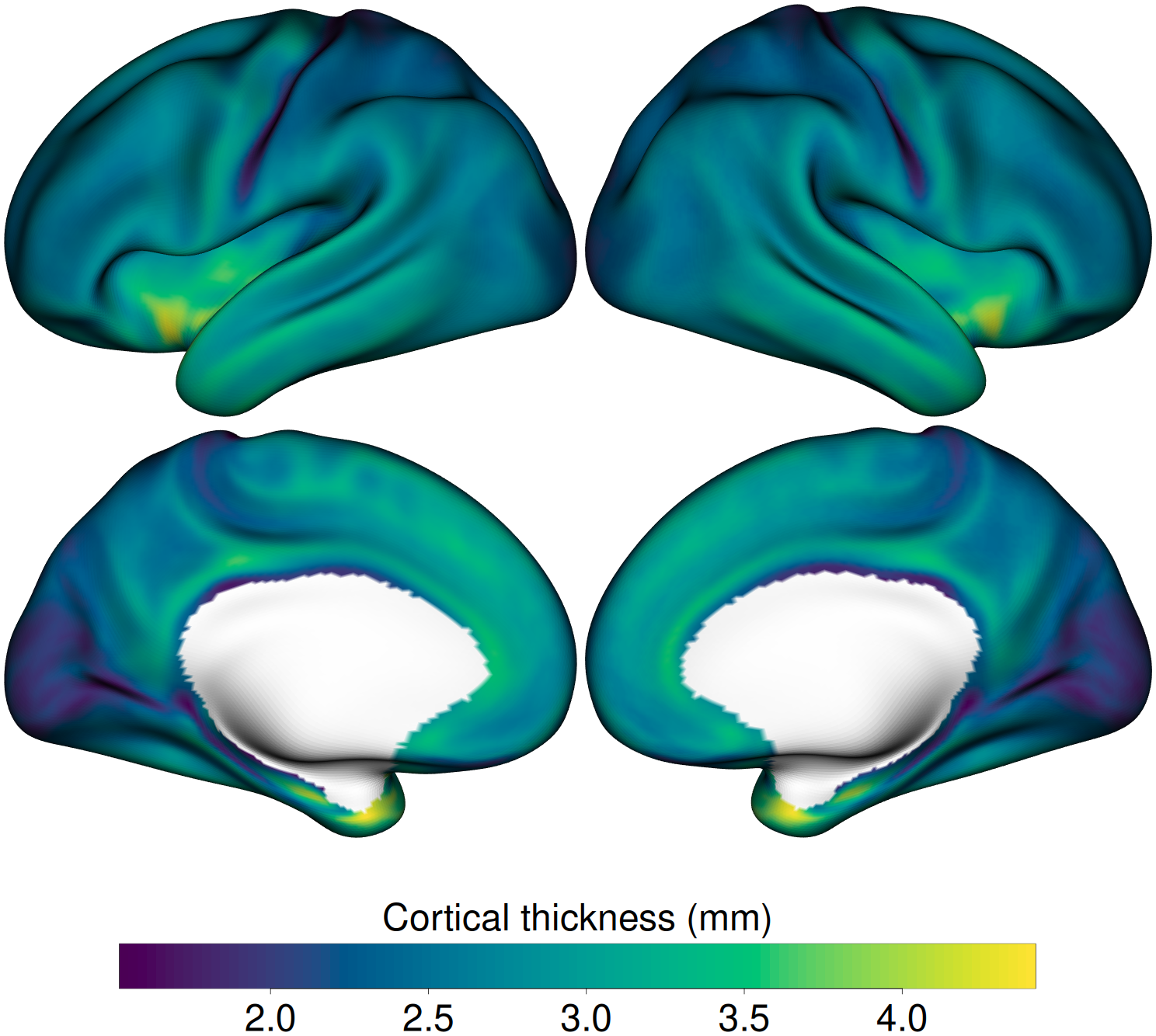

  subgraph B["Workflow B: CIFTI → fs_LR 32k"]
    C["CIFTI-2 dscalar"] --> RC["freesurferformats::read.fs.morph.cifti()"]
    RC --> LR["fs_LR 32k per-vertex data"]
    LR --> VIZ2["coloredmesh.from.preloaded.data() + export()"]
  end

Reproducing the figures

All scripts are standalone and documented in the README. They run from the repository root:

# Workflow A
Rscript 01_mni_volumetric/run_mni_pipeline.R
Rscript 01_mni_volumetric/run_mni_validation.R

# Workflow B
Rscript 02_cifti_fslr32k/run_cifti_pipeline.R
Rscript 02_cifti_fslr32k/run_cifti_validation.R
